Talk to a stepmill specialist| Resistance | 15 Intensity Levels |
| Console | LED |
| Programs | 8 preset programs |
| Max user weight | 170 kg |
| Warranty | 8 Year Commercial Warranty on Frame, 12 months Parts Replacement |

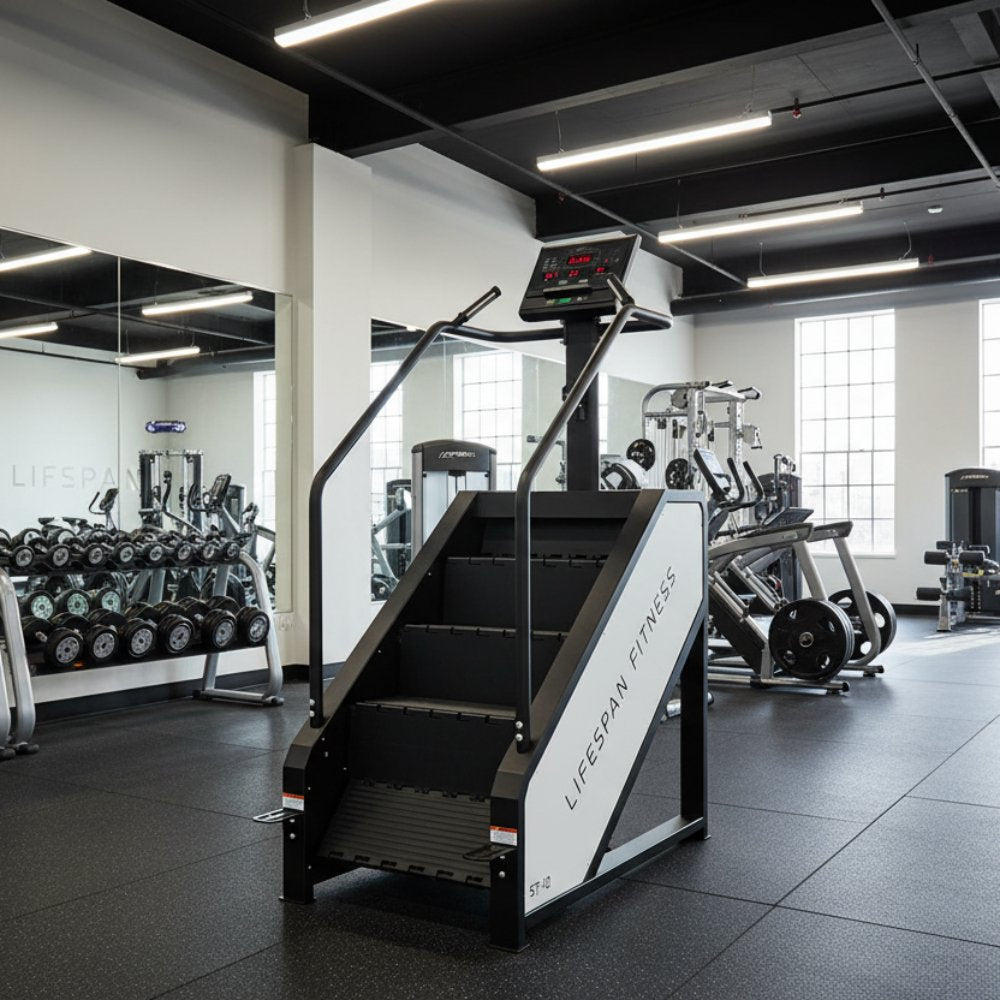

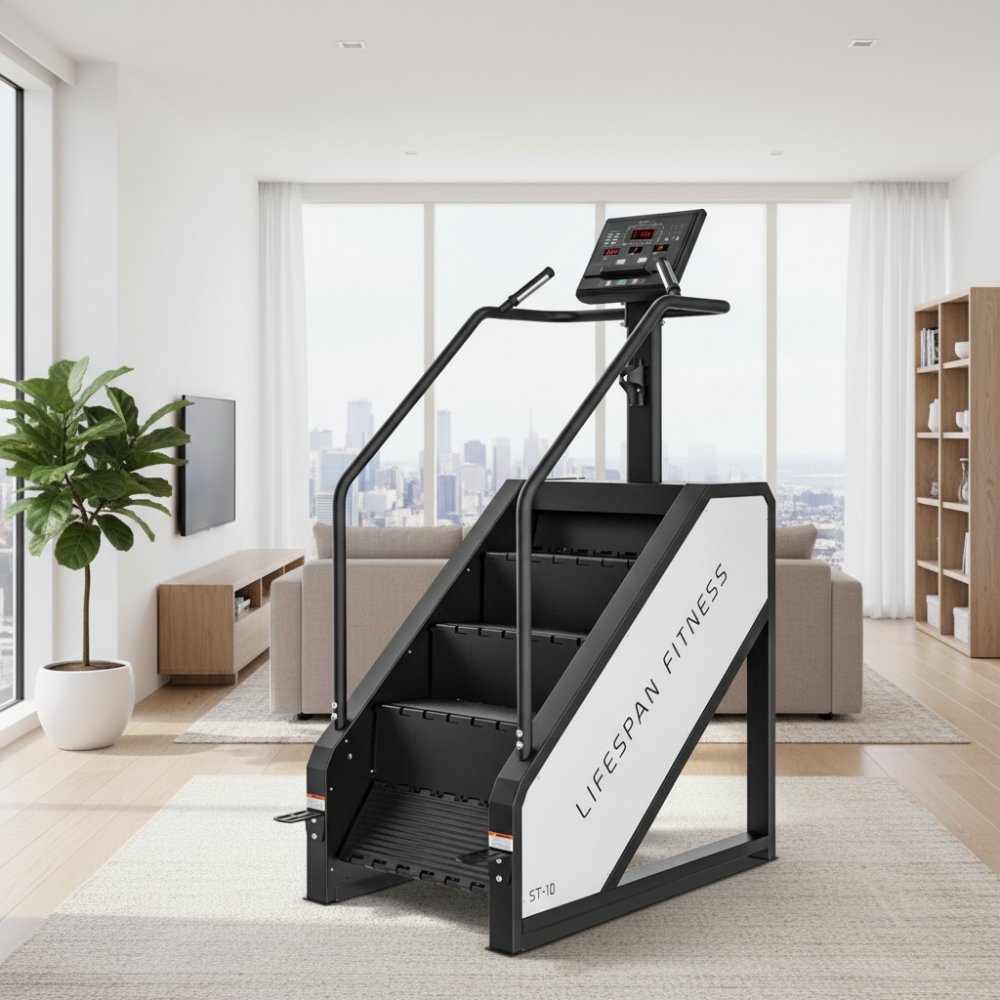

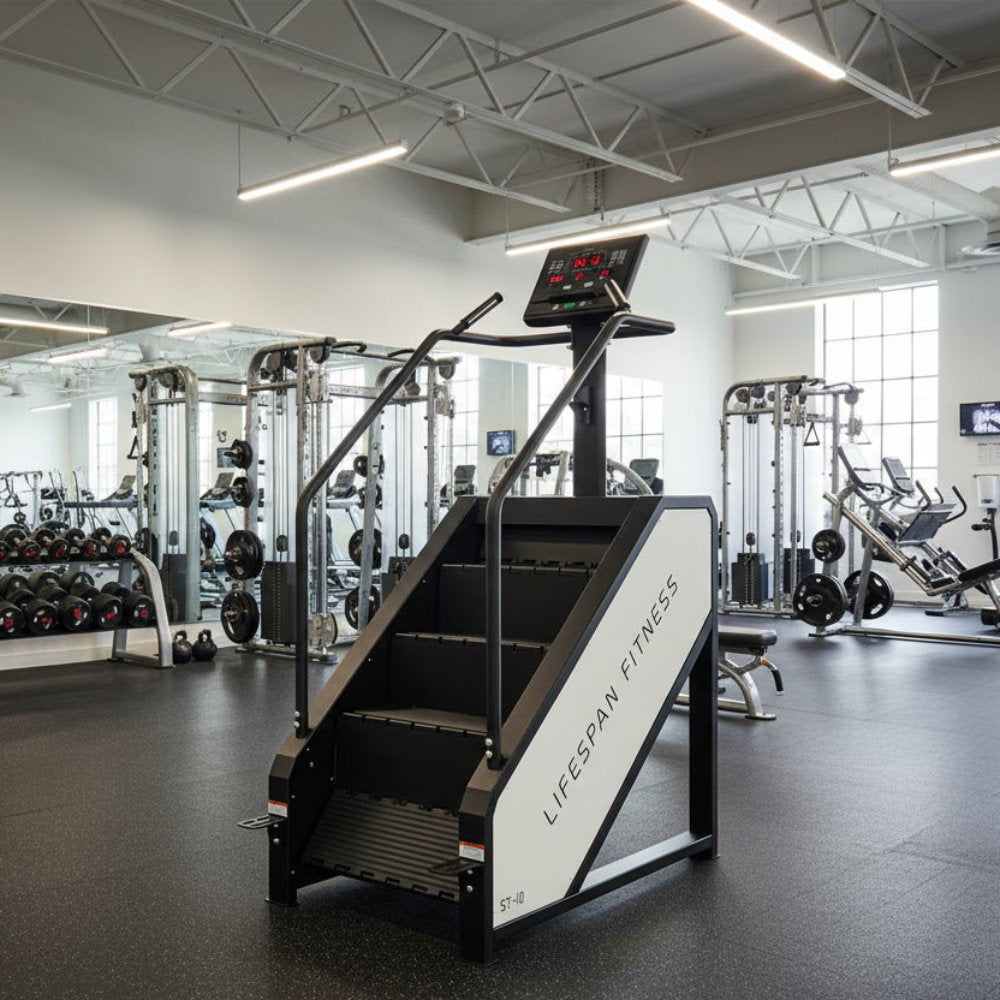

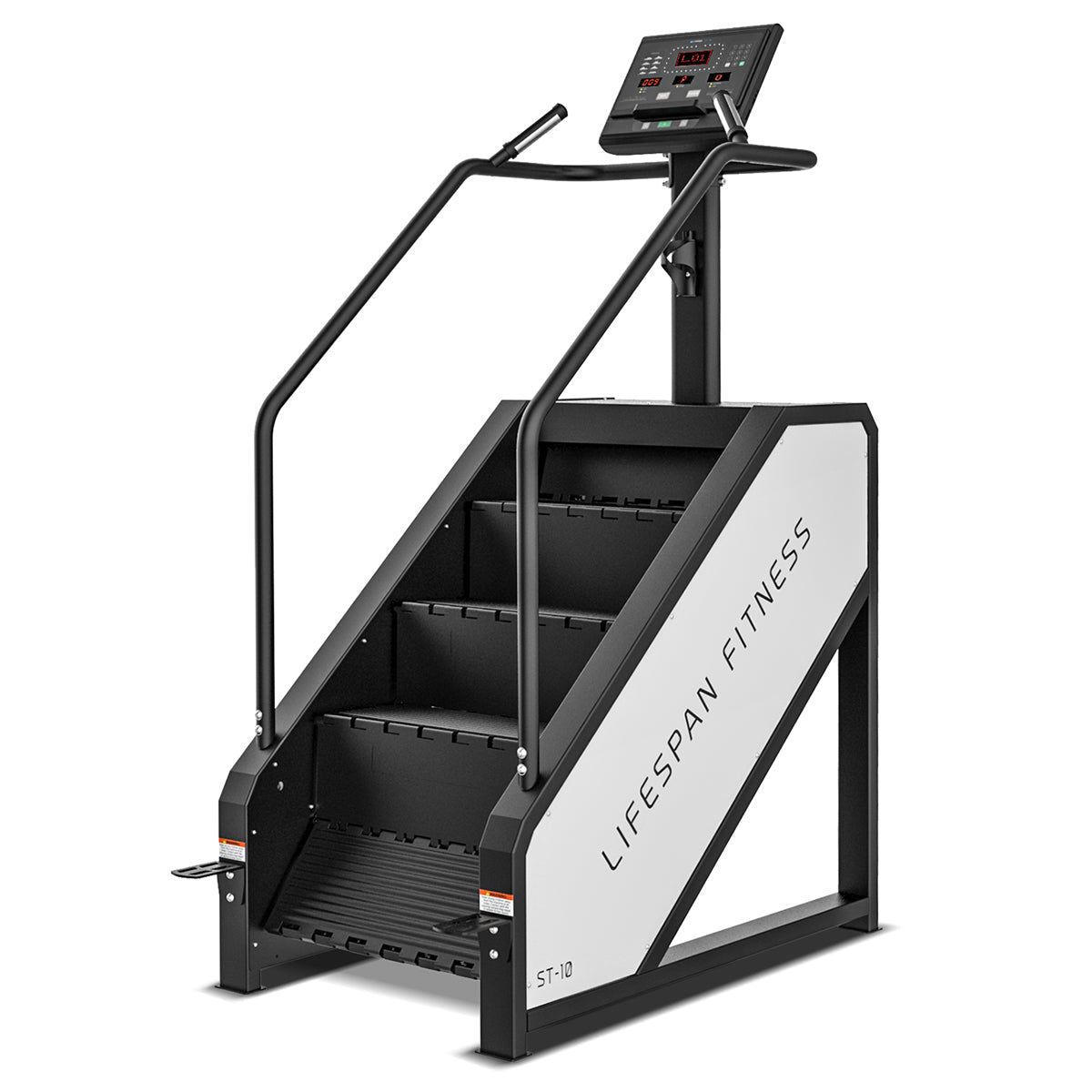

For a 24/7 gym or hotel fitness floor that needs a true stair-climbing station, the ST-10 runs a revolving 8-step staircase from 24 to 164 steps per minute and holds users up to 170 kg. Fifteen intensity levels and eight preset programs give members a full session on an LED dot matrix console.
It suits operators fitting out a high-traffic cardio zone, with a 160 kg steel frame, large padded handrails and infrared emergency-stop sensors backed by an 8-year commercial frame warranty. Integrated foot plates make on and off easy for a steady stream of members.
The 24 to 164 steps-per-minute range is what sells me on the ST-10: it caters to a deconditioned member and a lung-busting athlete on the same staircase, no swap-outs needed.
Hand-pulse sensors mean readings drop the moment you let go, so coach members to check between intervals. The 8-year commercial frame warranty is the detail I'd stake the recommendation on.
Adela Ledvinkova · Bachelor of Exercise & Sport Science · Our In-House Fitness Coach

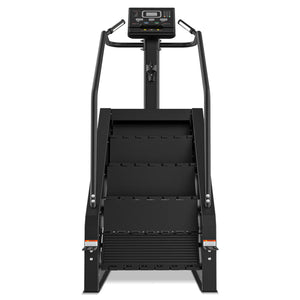

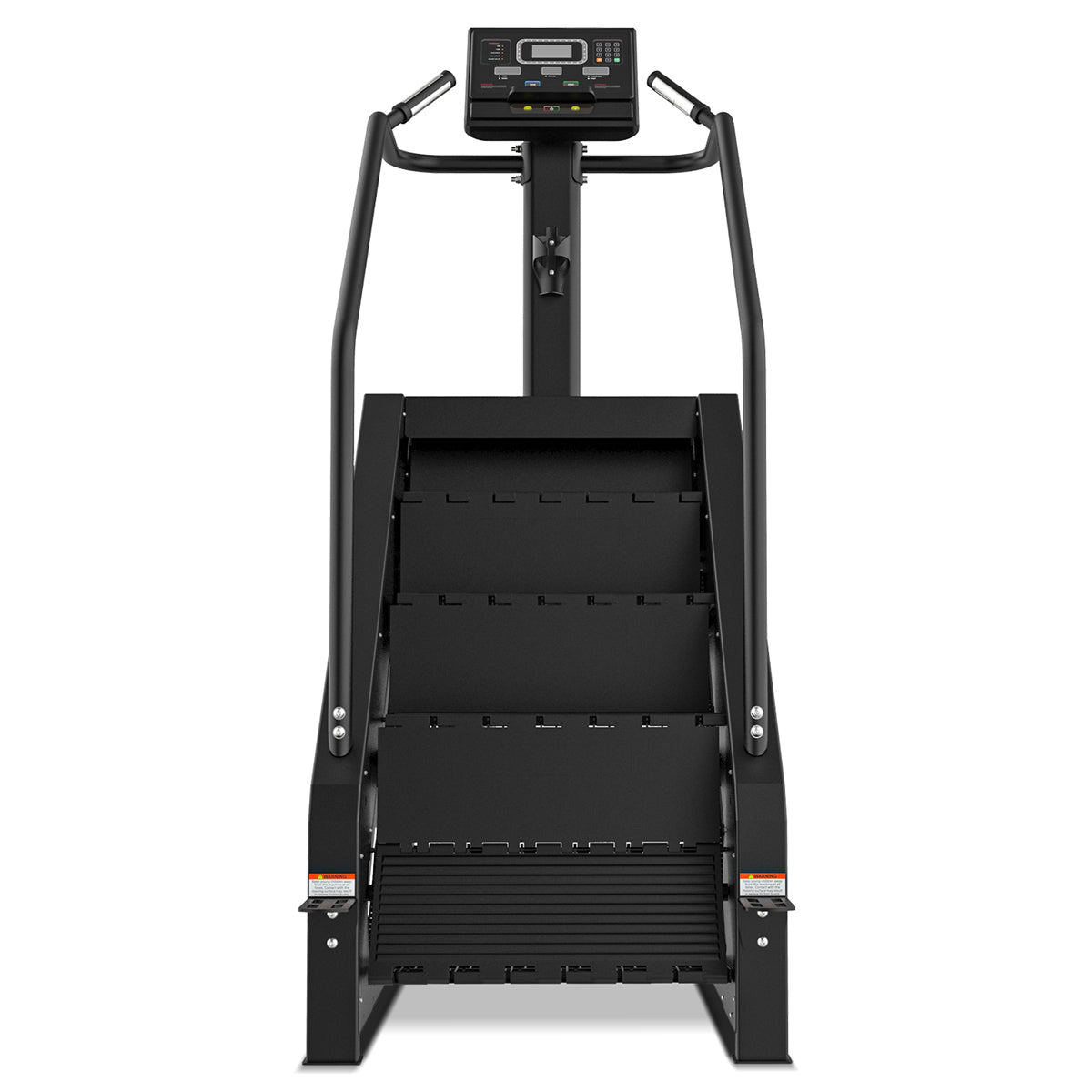

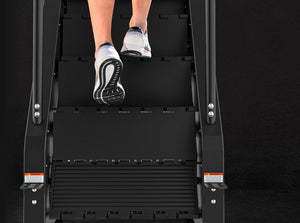

A revolving staircase with 8 steps delivers the honest, unloaded stair-climbing pattern that treadmills and steppers can't replicate. It drives the glutes, quads and calves under continuous effort.
Wide foot plates flank the staircase so members can mount and dismount without straddling a moving step.
What this means for you: It suits everyone from a member walking off a warm-up at 24 steps per minute to an athlete grinding out interval work near 164.
Built-in infrared sensors stop the staircase automatically if a user steps off or falls out of position, which matters on a moving-step machine in a busy multi-user room.
Large padded handrails give an immediate, comfortable grip for balance and for pulse readings.
What this means for you: For a 24/7 or unstaffed floor, an automatic stop is the feature I'd want doing the supervising when nobody's watching.
Hand pulse sensors in the handrails give members a quick read on where they're sitting during a session.
The pulse figure feeds straight into the console alongside time, calories and step count.
What this means for you: Hand sensors handle casual pacing well; a member chasing accurate HR zones should pair a chest strap (around $80).
A high-quality steel frame carries the load of a revolving-step machine under back-to-back sessions, which is the real test in a commercial room.
At 160 kg net, the mass keeps it planted through hard, fast stepping.
What this means for you: From my time around commercial floors, frame and warranty are where a stepmill earns its keep, and this one backs the frame for eight years.

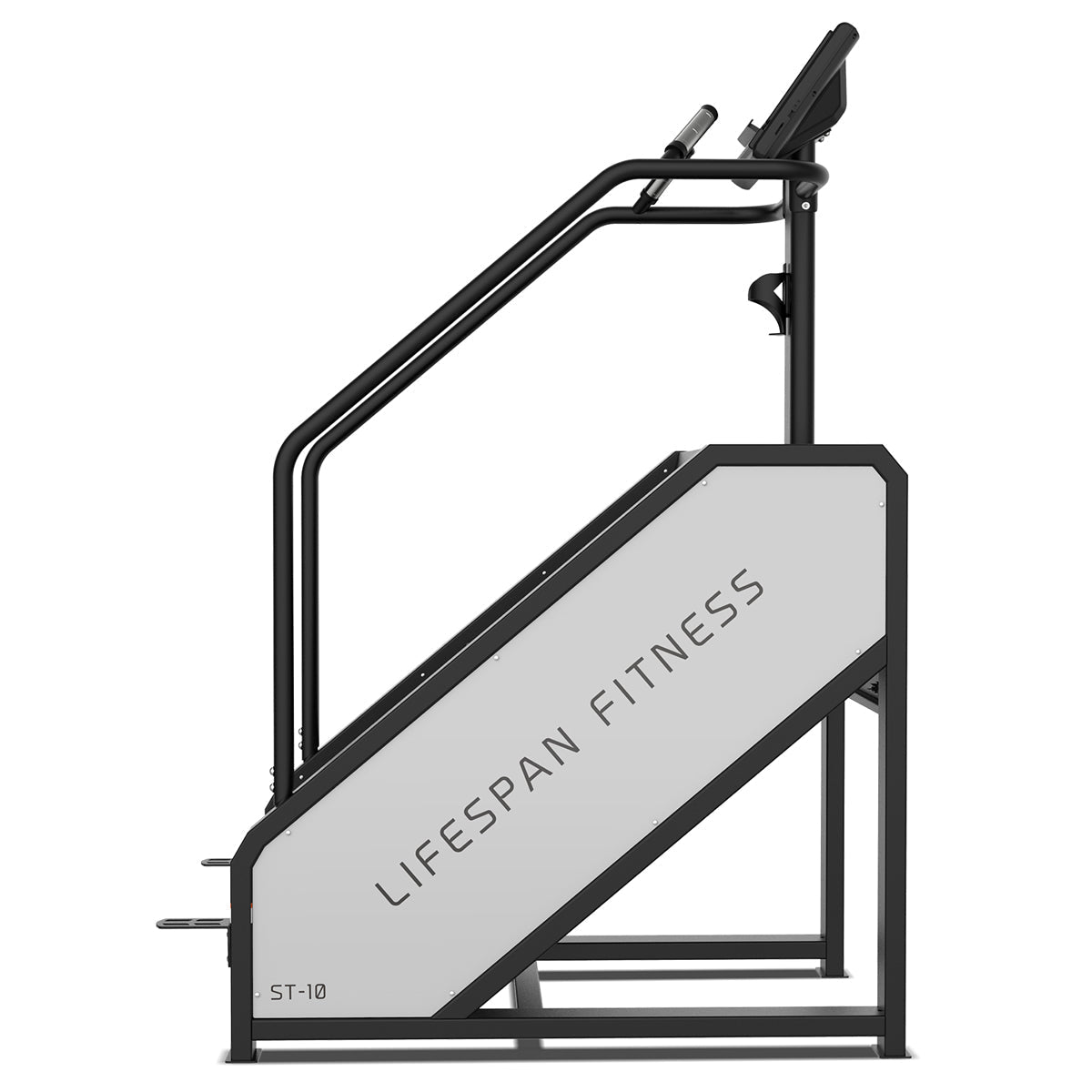

At 139 cm long and 73 cm wide, the ST-10 sits within a sensible cardio-zone footprint, and its 195 cm height clears a standard Australian ceiling of 2.4 m with room to spare.
Plan the surrounding clearance so members can mount and dismount from the foot plates safely.
What this means for you: Confirm the position is permanent before you build it, because at 160 kg it isn't something you'll shift on a whim.
The unit runs off a standard AC power plug on a 10A circuit, so it drops into most existing cardio zones without special electrical work.
Assembly is quick for a machine of this scale.
What this means for you: For a fit-out, standard power and a fast build mean less downtime getting the machine earning on the floor.
The frame carries an 8 year commercial warranty, with parts replacement covered for 12 months.
For an operator, warranty depth is a direct read on expected service life under multi-user load.
What this means for you: A commercial frame term this long tells you the brand expects it to keep working long after the newest members have joined.
| Frame | High quality steel |
| Staircase | Revolving staircase with 8 steps |
| Handrails | Large padded handrails |
| Foot Plates | Included for easy on/off access |
| Safety Features | Built-in infrared sensors for emergency stop |
| Assembled Dimensions | 139 cm (L) x 73 cm (W) x 195 cm (H) |
| Step Dimensions | 55.5 cm (W) x 23.5 cm (D) x 20.5 cm (H) |
| Net Weight | 160 kg |
| Gross Weight | 201 kg |
| Packaging Dimensions | 134 cm (L) x 94 cm (W) x 127 cm (H) |
| Maximum User Weight | 170 kg |
| Speed Range | 24 - 164 steps per minute |
| Intensity Levels | 15 |
| Workout Programs | 8 preset programs |

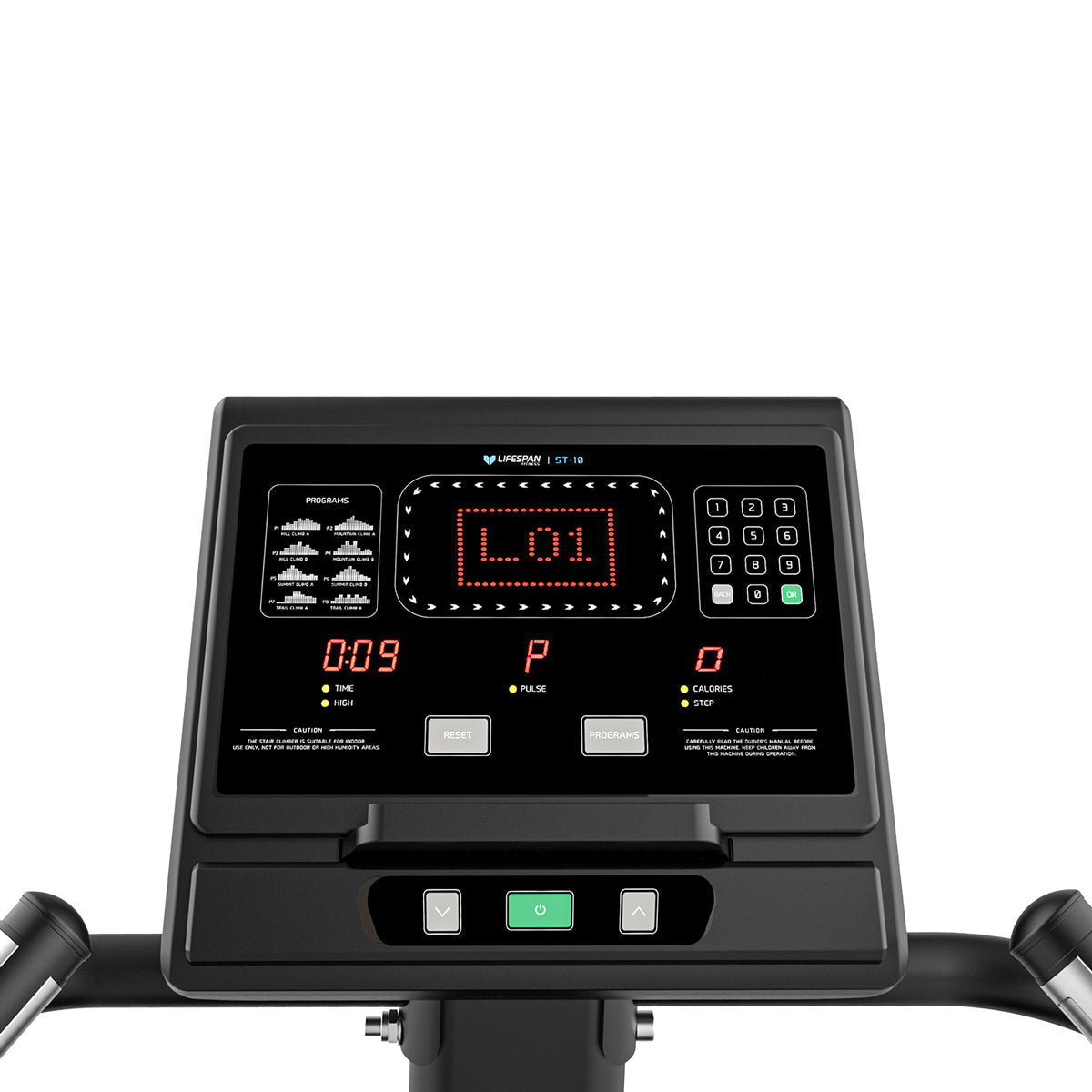

| Console | LED Dot Matrix Display |
| Console Features | Integrated tablet holder |
| Workout Feedback | Time, Distance, Calories, Step Count, Pulse |
| Heart Rate Monitoring | Hand pulse sensors |
| Power Supply | AC Power Plug (10A) |
| Warranty | 8 Year Commercial Warranty on Frame, 12 months Parts Replacement |
Effort: a one-person job, around 15 to 25 minutes for a first build.
It ships as a single crated unit with a gross weight of 201 kg on packaging dimensions of 134 x 94 x 127 cm, so it moves on a pallet. Have two people and a clear path ready, as the crate is heavy and bulky. For lead times on single units or fleet orders, request a quote and we'll confirm freight to your site.
Take photos before you unpack and send them to support@cardioonline.com.au within 48 hours of delivery. We lodge the freight claim, organise replacement parts or a full unit, and stay across it until you're running. You deal with us, not the courier or the manufacturer.
It's a one-person job, around 15 to 25 minutes for a first build. At 160 kg net it's front-heavy once upright, so clear the floor space and check it sits level before first use. The foot plates and padded handrails fit during setup, so budget a few extra minutes to seat them properly.
You get an 8 year commercial warranty on the frame and 12 months parts replacement, handled locally by us rather than an overseas manufacturer. That frame cover tells you what Lifespan expects of the steel under continuous multi-user stepping, which is the part that takes the real punishment in a busy fit-out.
Assembled footprint is 139 cm long by 73 cm wide, and it stands 195 cm tall, so it clears a standard 2.4 m ceiling comfortably. Add clearance above that for the tallest user stepping at the top of the staircase, plus space behind for safe on and off access via the foot plates.
Maximum user weight is 170 kg, and the revolving 8-step staircase suits everyone from deconditioned beginners on the lowest of 15 intensity levels up to fit members chasing hard interval work. In my experience it earns its place in commercial gyms, hotels and studios where a real staircase beats a pedal stepper for glutes and calves.
Speed runs from 24 to 164 steps per minute across 15 intensity levels, with 8 preset programs. That bottom end is genuinely slow for recovery or first-timers, and the top end is fast enough for stair sprints. The wide band is what makes it work for mixed-ability members on the same machine.
It reads pulse through hand sensors on the padded handrails, fine for a rough check. For accurate HR zones during intervals, pair a chest strap for a true reading. On safety, built-in infrared sensors trigger an emergency stop if a user slips or steps off, which matters on an unmanned floor.
